Pedestrian Drum Handlers

Grab-O-Matic Model: SC21 ’V’ Type

Grab-O-Matic Model: SC21 ’V’ Type

Product information

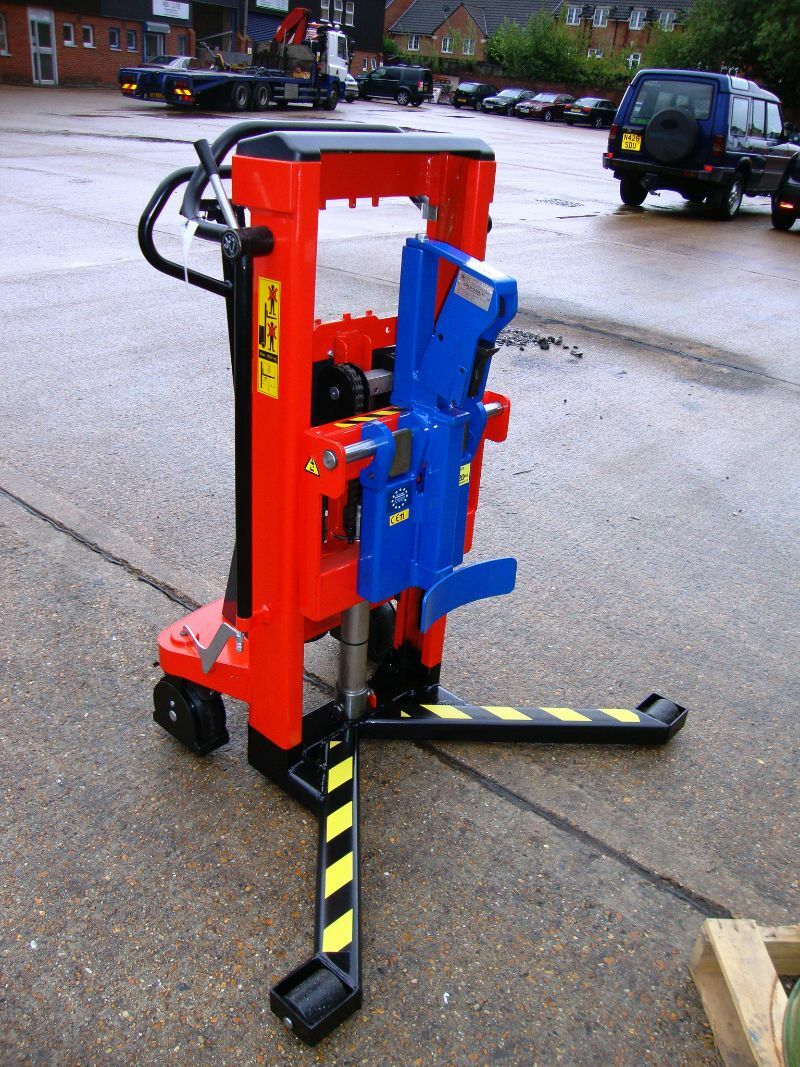

Grab-O-Matic Model: SC21 ’V’ Type – Manual pedestrian drum carrier for the removal of drums from the corners of pallets. Fitted with a quick release removable rim grip drum grab attachment for all steel drums, plastic ‘L’ ring drums and most fibre drums.

The ‘V’ type legs allow the unit to remove a drum from each corner of a pallet of 4 drums, move around a workshop and place onto the floor, pallet or bund. The drum grab attachment (model QR-HD-1) grabs the drums on the top rim when the carriage is raised by the manual hand pump and will not release the drums until set to the ground.

The unit is available in various lift heights and also power lift and power drive versions.

Standard Features

– 2 speed manual hydraulic lifting
– Hand brake on rear swivel castors
– Transparent and impact resistant safety screen on the mast
– Ergonomic handle for relaxed operating position
– Low overall height for optimum view
– Strong construction ensures a long operating life and low maintenance costs

Technical Specification-Standard SC21 ‘V’

– Overall Height: 1350mm
– Overall Width: 1350mm (across V legs)
– Lift Height: 500mm
– SWL: 500kg

Optional Extras

– Increased lift heights
– Power Lift & Power Drive versions available
– Interchangeable attachments

All fork attachments are CE marked issued with Test Certificates, Certificates of Conformity and manufactured entirely in the UK to ISO 9001:2008.

Contact Us
ATEX Stainless Steel V Type

SC21-V-ATEX St Steel

A stainless steel pedestrian drum handler for use in clean room areas.

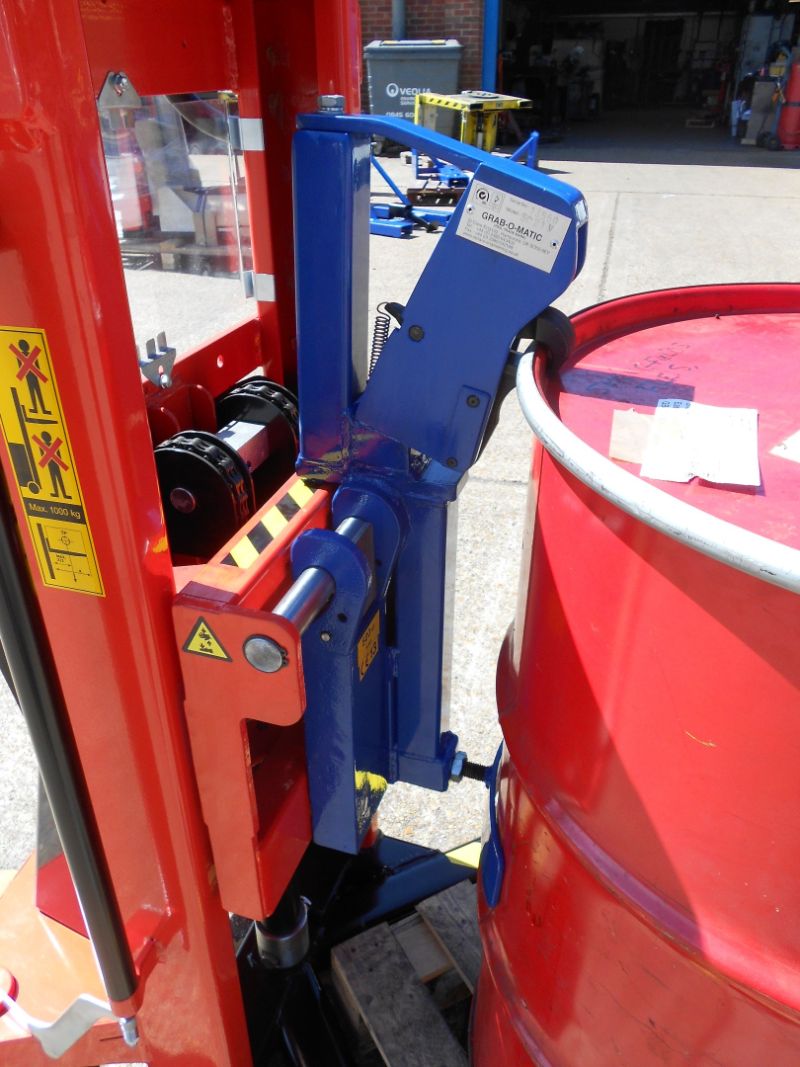

QR-HD-1 Rim Grip Gripping Head Attachment

QR-HD-1 Rim Grip Attachment

Drum handler gripping head attachment for all steel, open top, tight head and plastic L-ring drums.

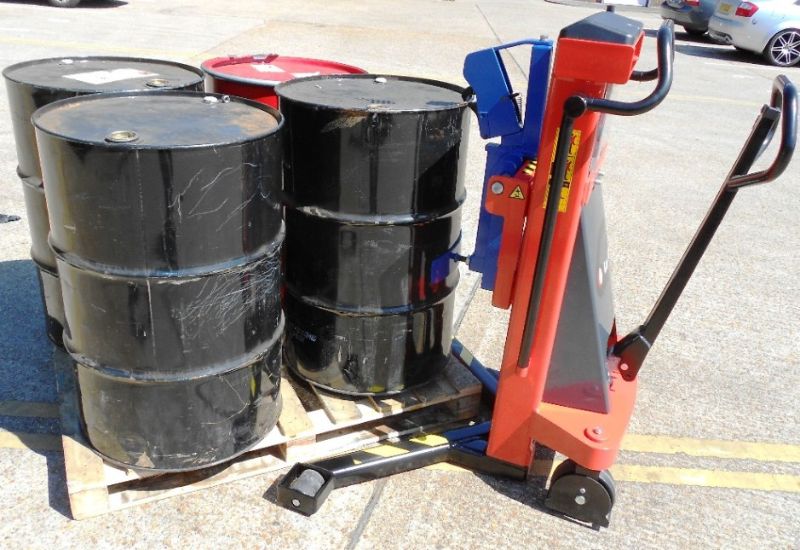

SC21 V 4 Drums on Pallet-250KB

SC21 V

Can remove a single drum from the corner of a pallet of four drums.

SC21 V 2011

SC21 V

The unit is available in manual lift and power drive and lift options.

SC21 'V'

Corner de-palletiser drum handler

A Standard S21-V can lift a maximum of 500MM. Other lift heights available.
