Drum Handling Drum Rotators

Grab-O-Matic SC10 W Drum Rotator

SC10-W Drum Rotator

Product information

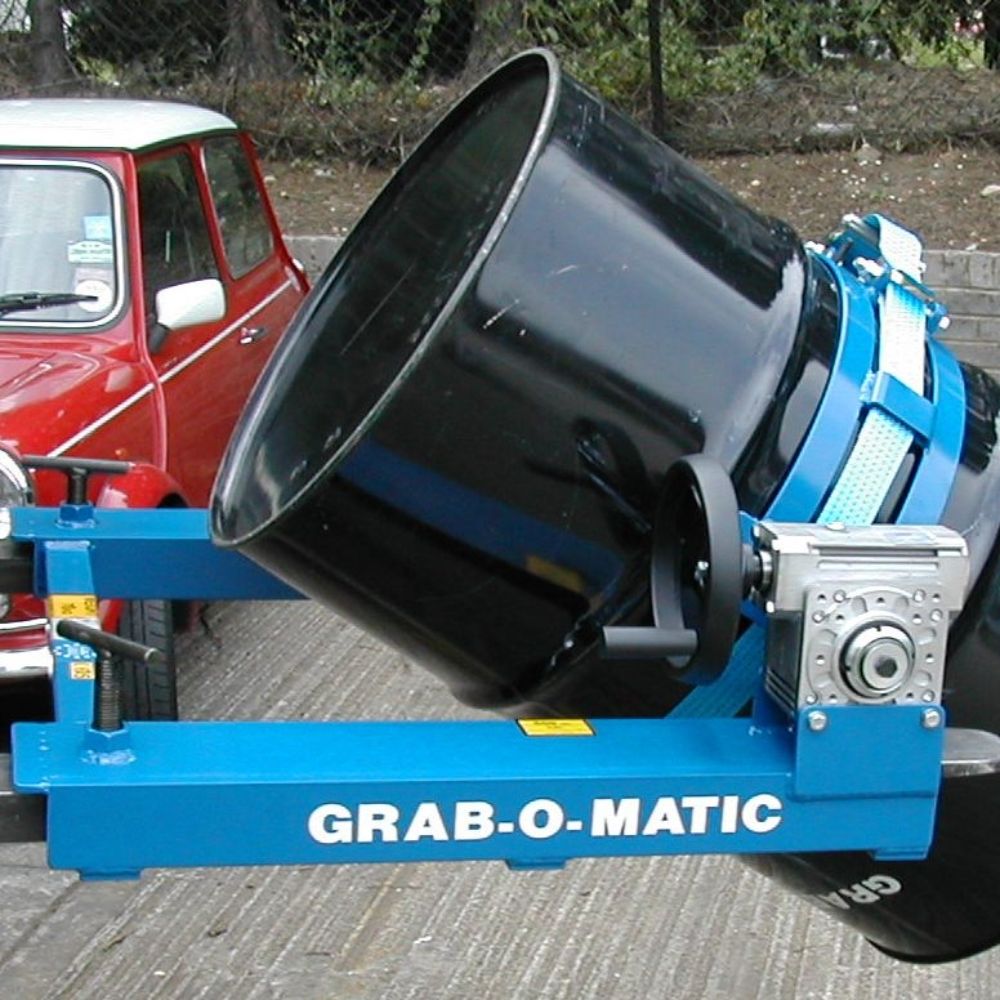

The Grab-O-Matic SC10 W Drum Rotator is for the lifting and rotating of steel or plastic drums to dispense the contents in a controlled manner.

The drums are clamped in a steel hoop with a webbing and ratchet clamping system. The forward rotation is via a hand operated gearbox that allows full control throughout the dispensing process. The drum turner is secured to the forks of the truck with zinc plated ‘T’ bolts.

Optional extras are available for the SC10 W Drum Rotator such as the Safety Adaptor when lifting and tilting smooth sided plastic drums, chain wheel and chain for dispensing above 1.5m.

An Over Head drum rotator is available model SC10-OH for use with over crane hook or it can be slung from the forks of a fork truck, and a Heavy Duty unit for steel drums up to 1000kg model SC10-HD.

Technical Specification

– SWL: 500kg
– Fork Entry: 130mm x 70mm (larger sizes available)
– Minimum Fork Spread: 700mm between forks

Weight: 70kg

Contact Us
New SC10-W

Drum Rotator SC10-W

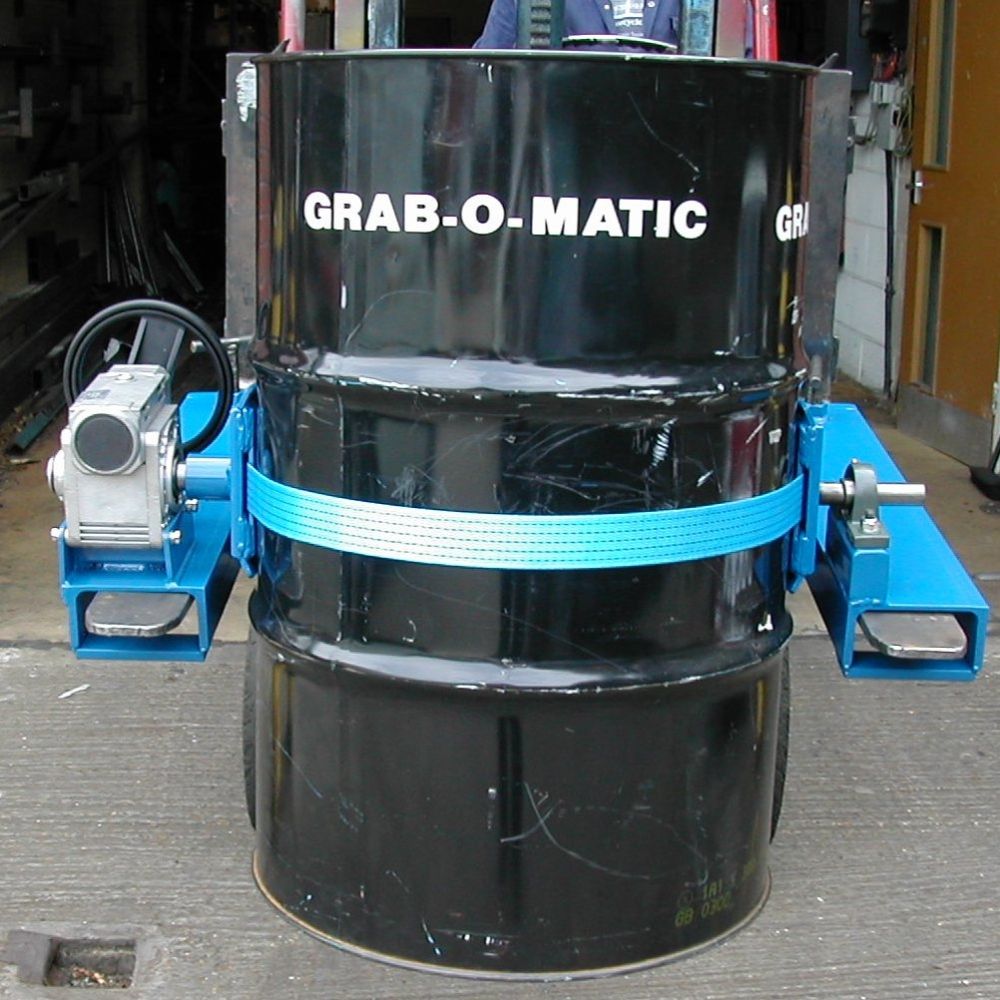

A webbing and ratchet clamping system is used in place of the full steel hoop clamping system.

Webbing Strap -Front SC10 W

SC10-W

The webbing strap can be used on steel or plastic drums.

Webbing Strap -Front SC10 W

SC10 -PW

Open top plastic or tight head plastic L-ring drums are suitable for the SC10-PW.

Webbing Strap -Front SC10 W

SC10-C

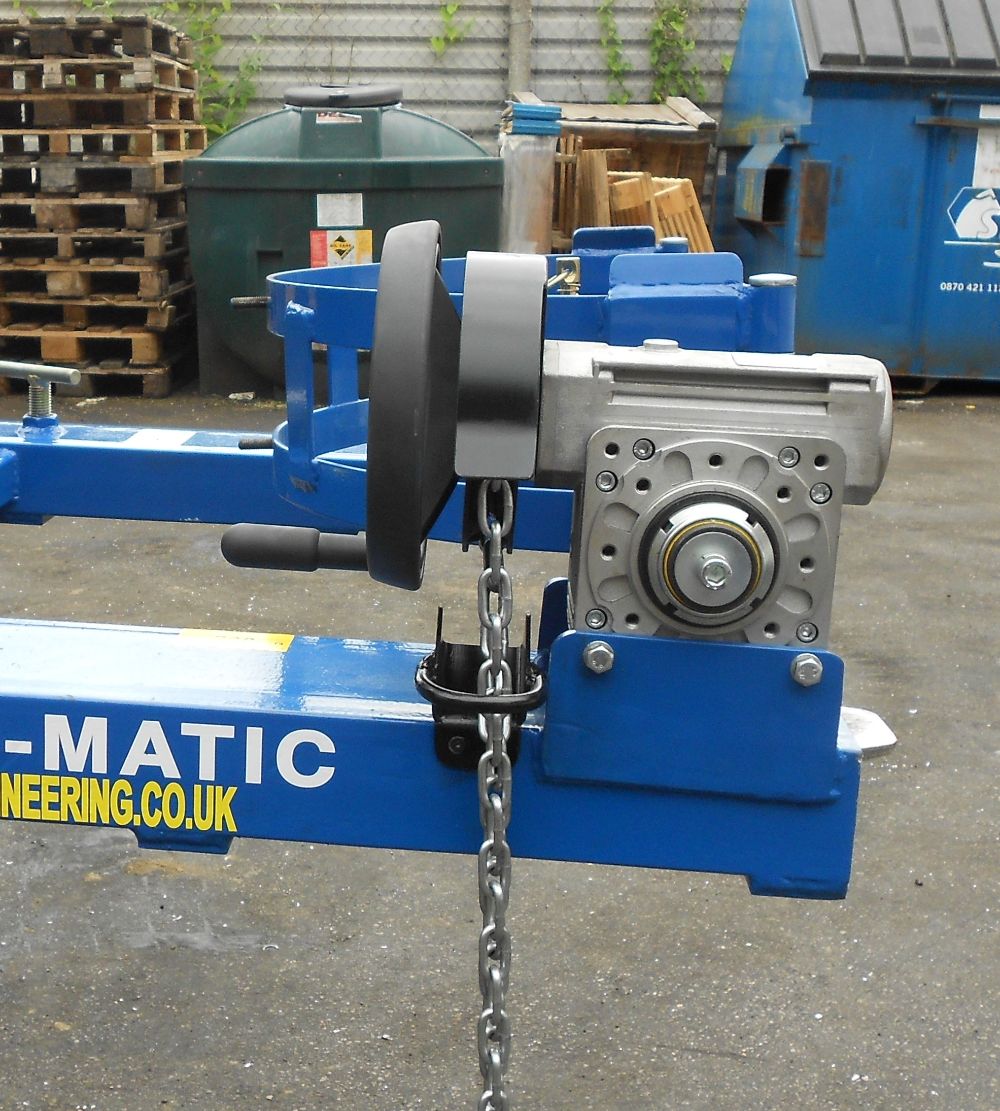

An optional chain wheel and chain is available for dispensing at high level.

Webbing Strap -Front SC10 W

SC10-PW

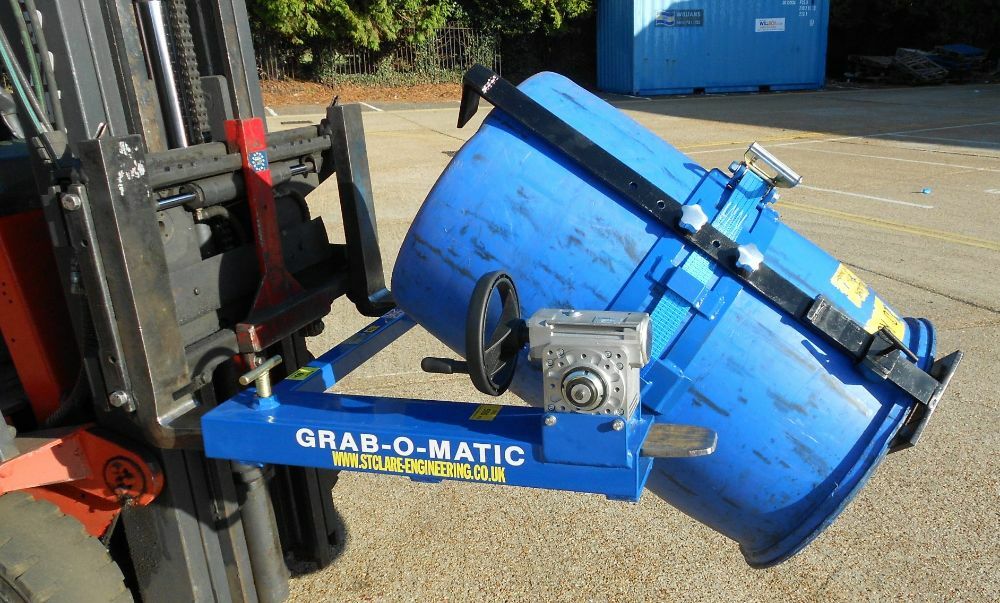

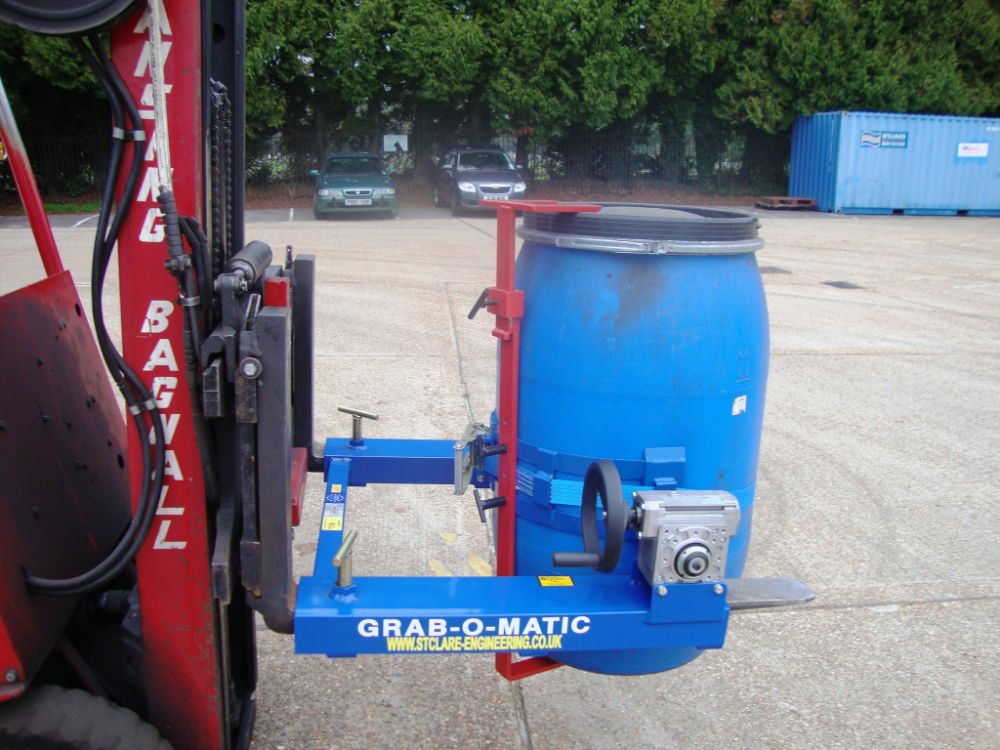

For plastic drums a webbing and ratchet clamping system and safety adaptor to stop the drums from slipping when lifted or rotated.
