Drum Handling Drum Rotators

Grab-O-Matic SC10 OH Drum Rotator

SC10 Over Head Drum Rotator

Product information

The Grab-O-Matic SC10-OH Overhead Drum Rotator is for the lifting and rotating of steel or plastic drums to dispense the contents in a controlled manner.

The drums are clamped in a steel hoop with an adjustable clamp and locking pin, the forward rotation is via a hand operated gearbox that allows full control throughout the dispensing process, The drum turner can be hung from the hook of an overhead crane or secured to the forks of the truck with zinc plated ‘T’ bolts.

Optional extras are available for the SC10-OH such as the Safety Adaptor when lifting and tilting smooth sided plastic drums, webbing and ratchet drum clamping system, chain wheel and chain for dispensing above 1.5m.

A Fork Attachment drum rotator is available model SC10 for use with the forks of a fork truck and a Heavy Duty unit for steel drums up to 1000kg model SC10-HD.

Technical Specification

– SWL: 500kg
– Fork Entry: 130mm x 70mm (larger sizes available)
– Minimum Fork Spread: 300mm between forks

Weight: 70kg

Contact Us

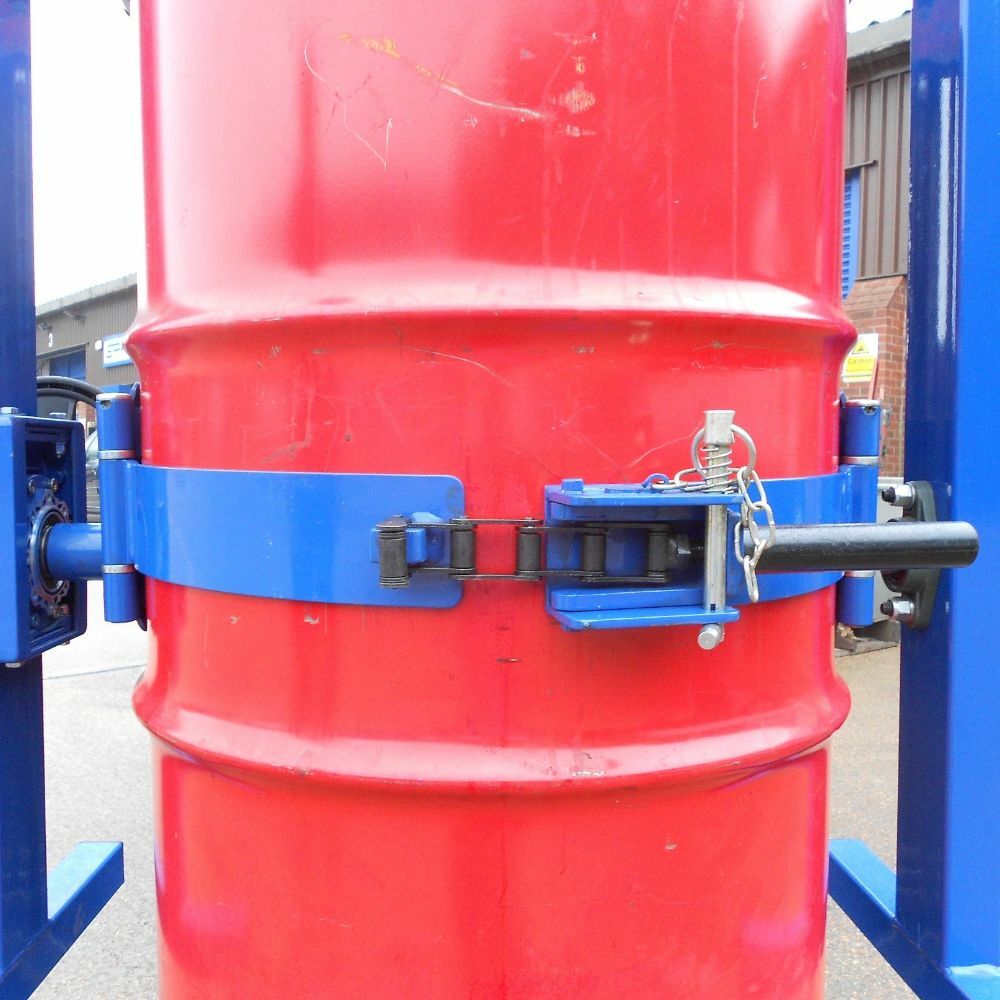

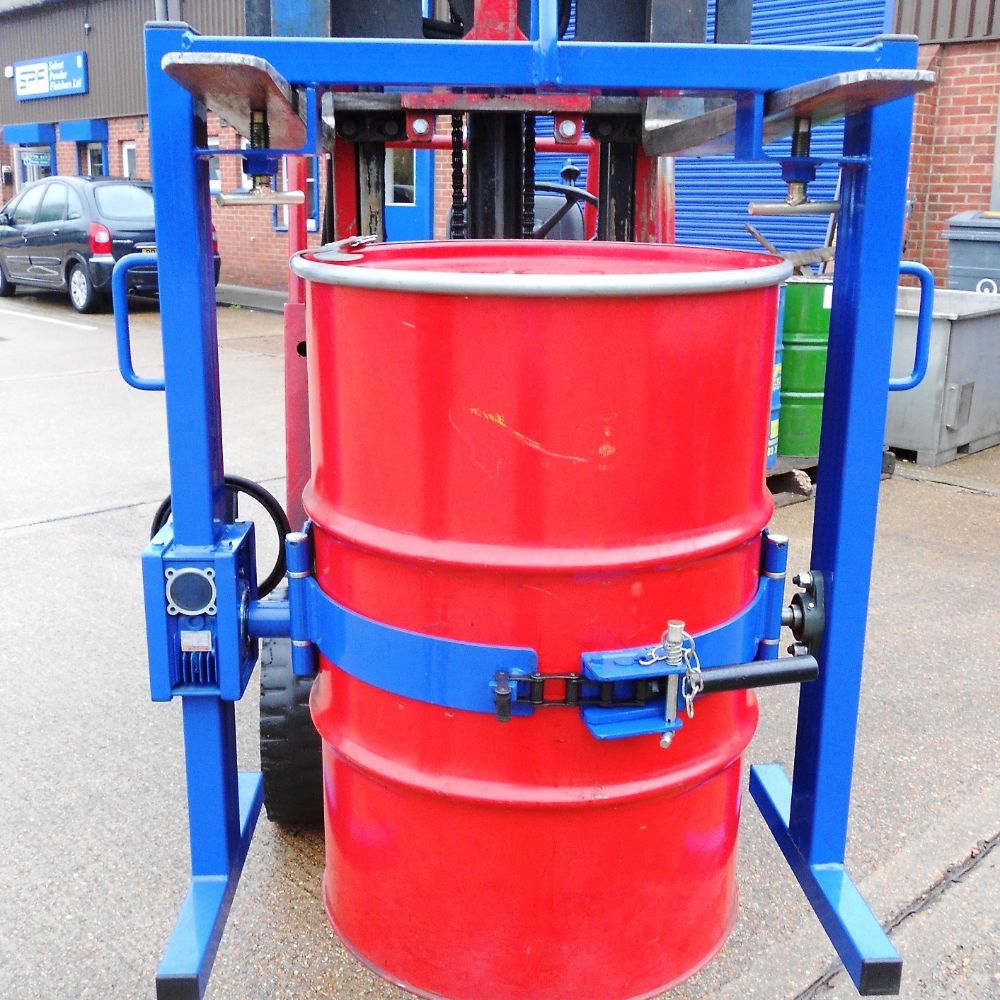

Clamp and Locking Pin

SC10-OH Clamp and Locking Pin

The standard SC10-OH is fitted with the adjustable overcentre chain clamp and locking pin.

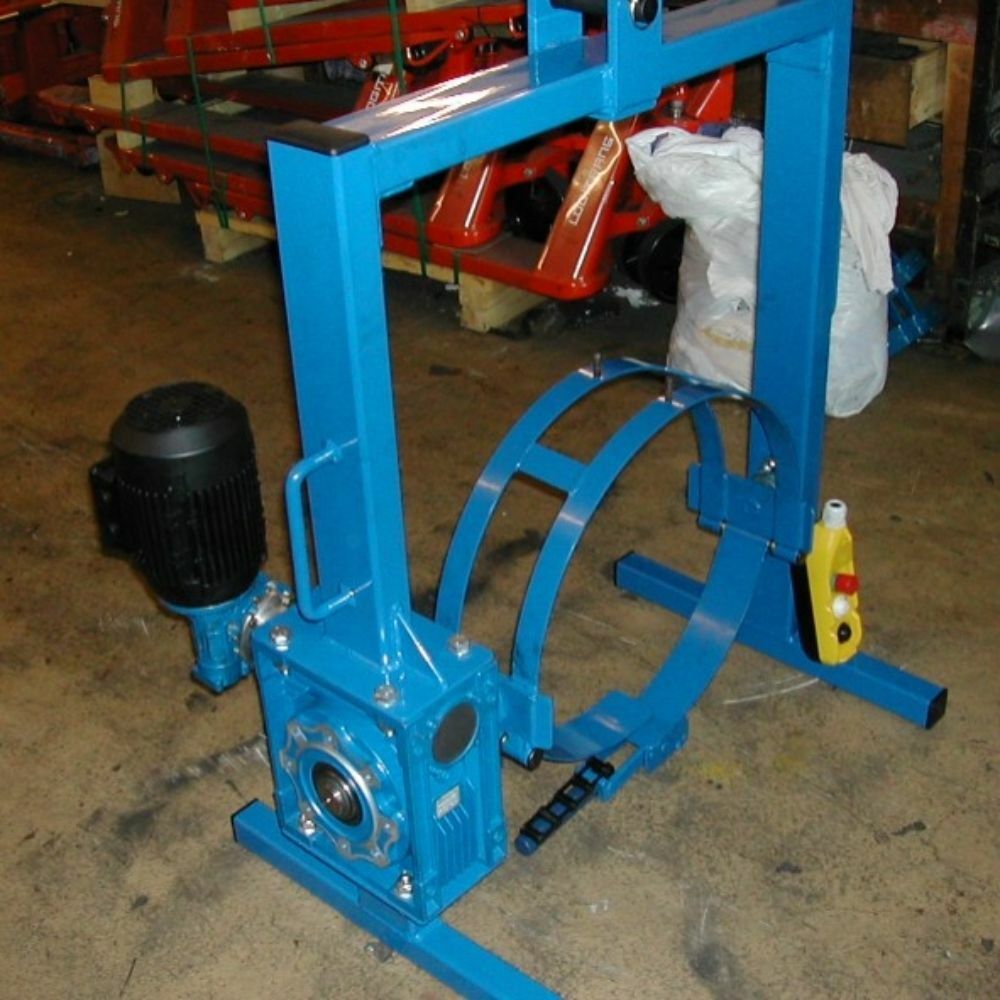

Powered Over Head Sc10 Drum Rotator

Powered Over Head SC10-OH Drum Rotator

Power rotation options are available. These are bespoke items made for customer requirements.

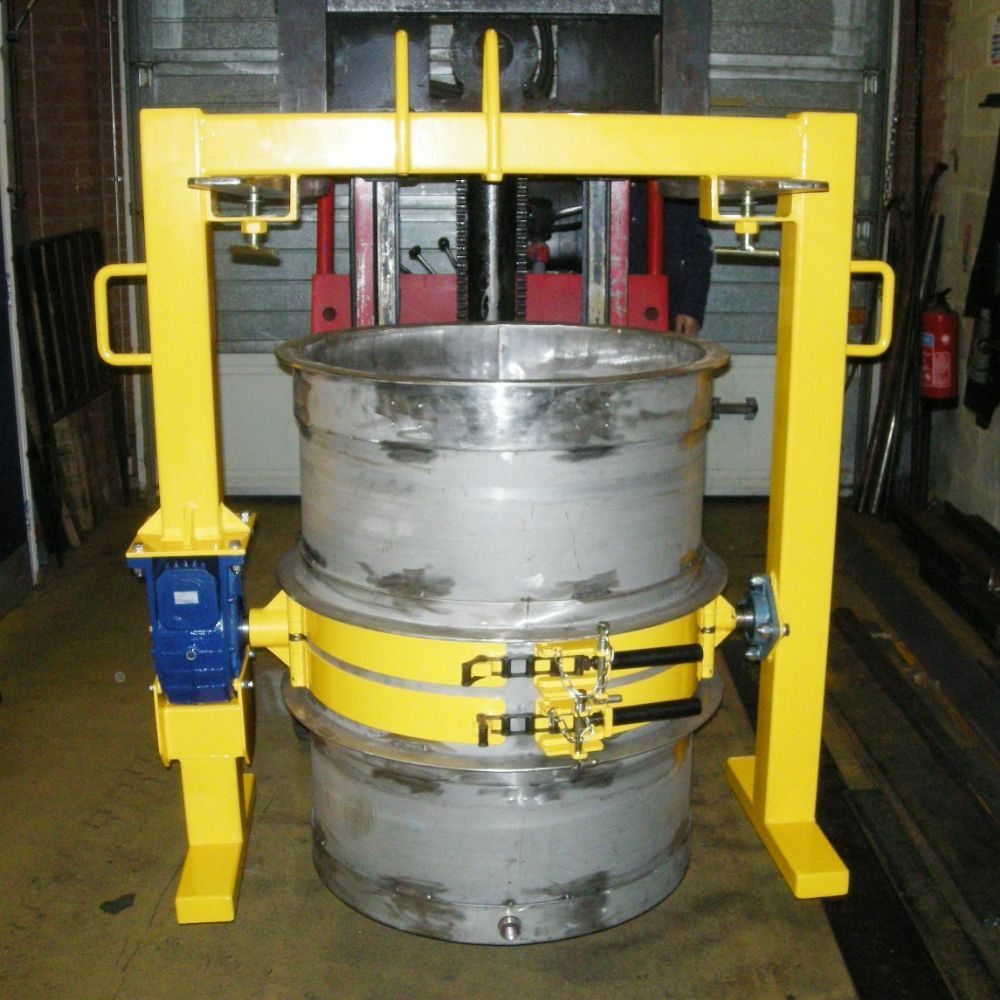

SC10 OH Heavy Duty Special Drum Rotator

SC10-OH-HD Heavy Duty Special Drum Rotator

Heavy duty units are available and are manufactured bespoke to customer requirements.

SC10 OH St-Steel Rotated

SC10-OH-St-Steel

Stainless steel units are available for clean room or ATEX spark proof areas manufactured bespoke customer requirements.

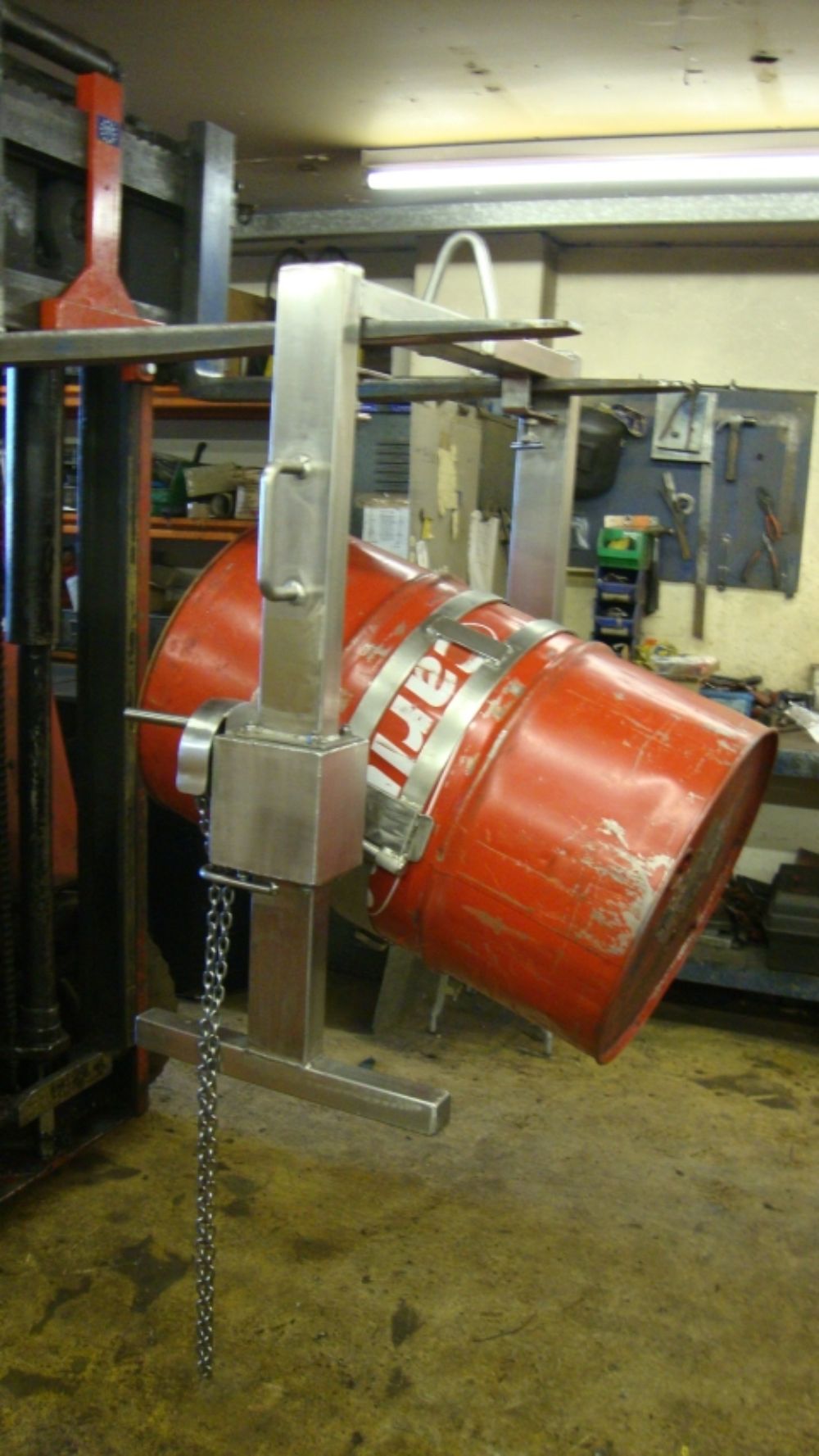

SC10 Over Head Front

SC10-OH Over Head

Standard units can be hung from the hook of an overhead crane or fork pockets can be specified for use with a fork truck.
