Drum Handling Drum Rotators

Grab-O-Matic SC10 HD Drum Rotator

SC10-W HD Drum Rotator

Product information

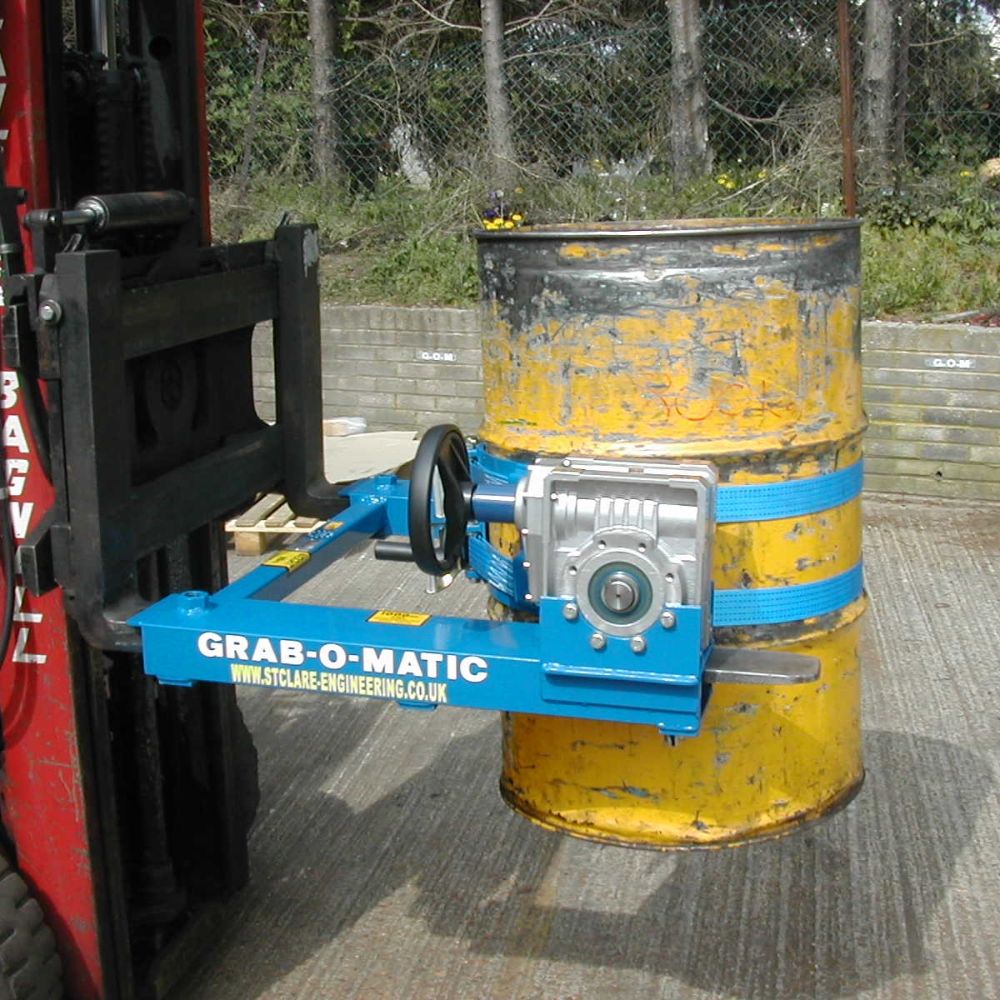

The Grab-O-Matic SC10-HD Drum Rotator is for the lifting and rotating of steel or plastic drums to dispense the contents in a controlled manner.

The drums are clamped in a steel hoop with an adjustable clamp and locking pin, the forward rotation is via a hand operated gearbox that allows full control throughout the dispensing process, The drum turner is secured to the forks of the truck with zinc plated ‘T’ bolts.

Optional extras are available for the SC10-HD such as the Safety Adaptor when lifting and tilting smooth sided plastic drums, webbing and ratchet drum clamping system, chain wheel and chain for dispensing above 1.5m.

An Over Head drum rotator is also available model SC10-OH for use with an overhead crane hook or it can be slung from the forks of a fork truck, and a Heavy Duty unit for steel drums up to 1000kg model SC10-OH-HD

Technical Specification

– SWL: 1,000kg
– Fork Entry: 130mm x 70mm (larger sizes available)
– Minimum Fork Spread: 700mm between forks

Weight: 100kg

Contact Us
SC10-W Heavy Duty Drum Rotator

SC10-HD-W Heavy Duty Drum Rotator

The heavy duty unit is suitable for steel or plastic drums up to 1000 KG.

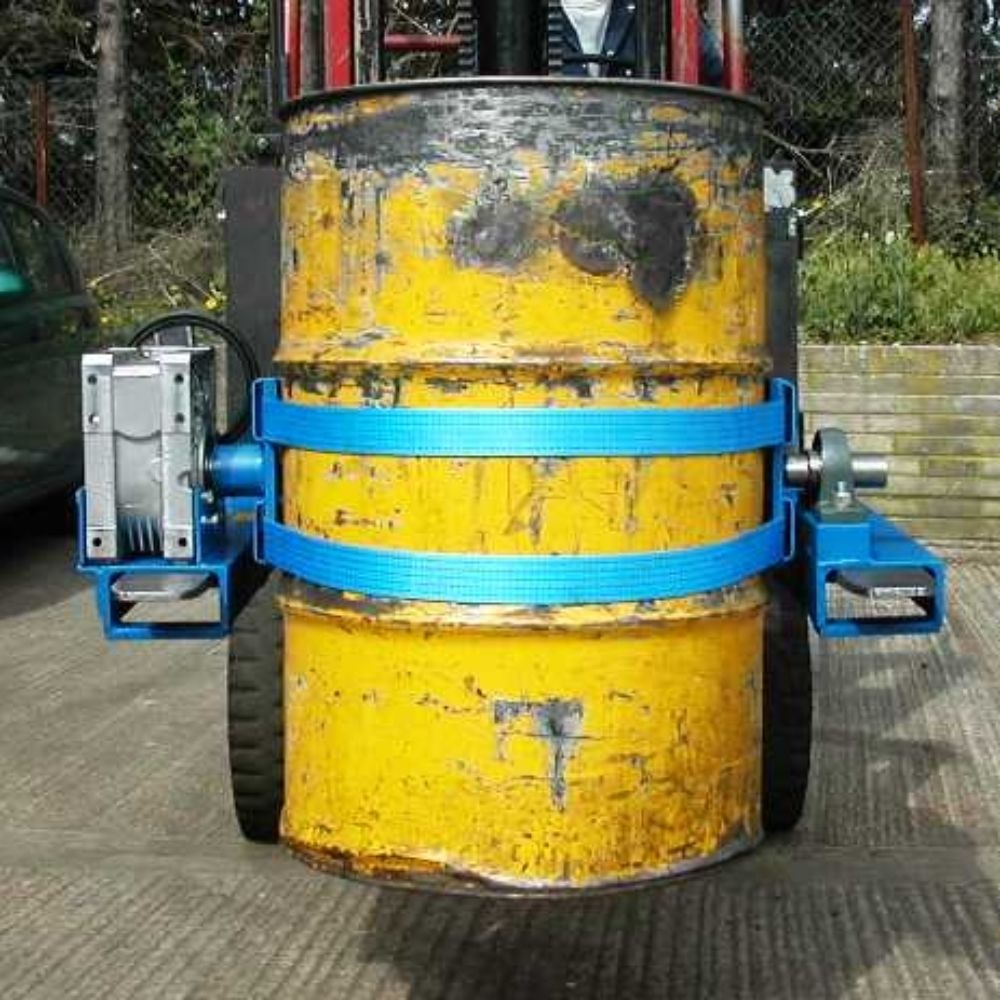

Twin Webbing Heavy Duty SC10

Twin Webbing Heavy Duty SC10-HD-W

A twin webbing and ratchet clamping system or twin steel clamping system are options for the SC10 HD.

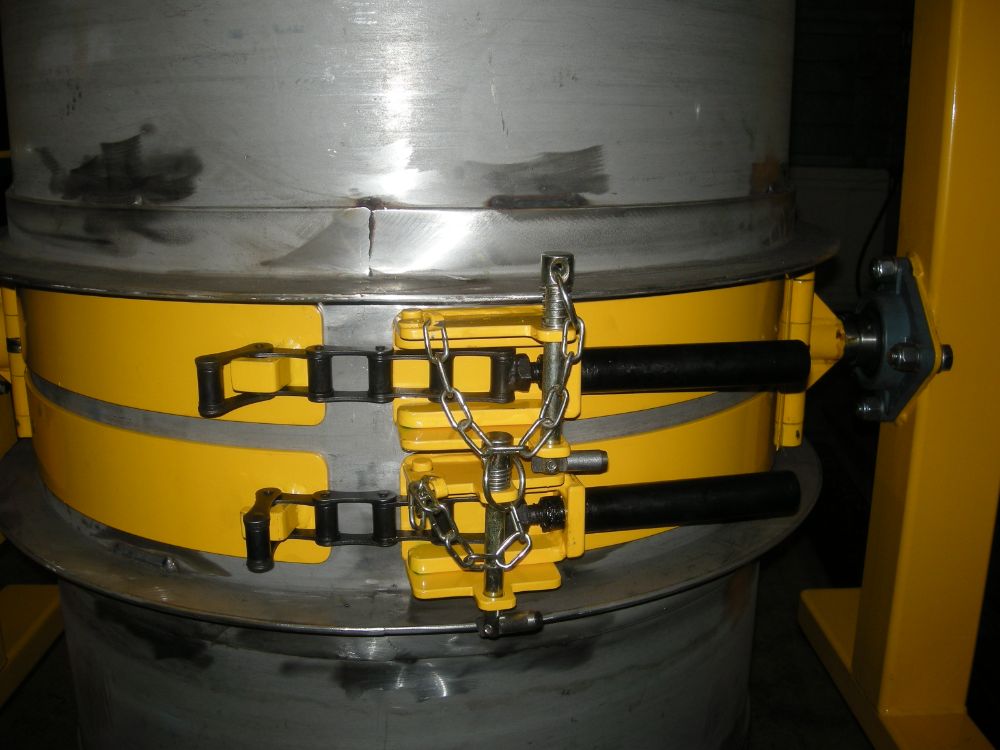

SC10-HD Double Clamping System

SC10-HD Double Clamping System

Steel adjustable overcentre chain clamp system.
