ATEX Stainless Steel Drum Handlers

Grab-O-Matic ATEX Stainless Steel Waist Gripper Single Drum Handler

Grab-O-Matic ATEX Stainless Steel Waist Gripper Single Drum Handler

Product information

The Grab-O-Matic Single Drum Handler model DH-1 St/Steel is suitable for all steel drums only with pronounced rolling rims and is secured to the forks with ‘T’ bolts.

The complete DH-1 is manufactured completely from stainless steel and the unit is suitable for use in an ATEX Zone 1 spark proof area. The drums are grabbed under the centre rolling rim and released when set down to the ground, damaged drums and drums of various sizes and diameters cannot be grabbed with the DH-1 St/Steel single drum handler.

As this unit is manufactured completely from stainless steel it is also suitable for applications and areas that require a complete wash down after use.

Technical Specification

– SWL: 500kg
– Fork Entry: 130mm x 70mm (larger/smaller sizes available)
– Weight: 40kg

Availability: Stock

Contact Us

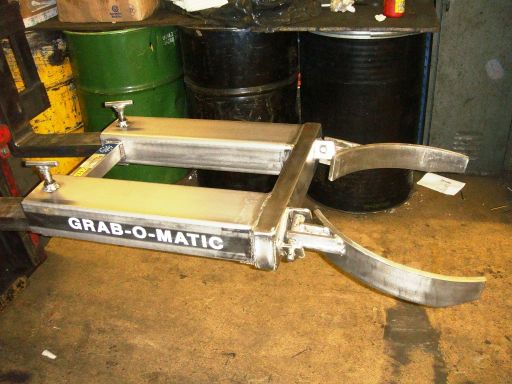

DH-1 St-Steel

DH-1 St. Steel

Manufactured from stainless steel for use in ATEX or clean room environments.

Stainless Steel DH-1

DH-1 St. Steel

Suitable for steel drums only with pronounced rolling rims.

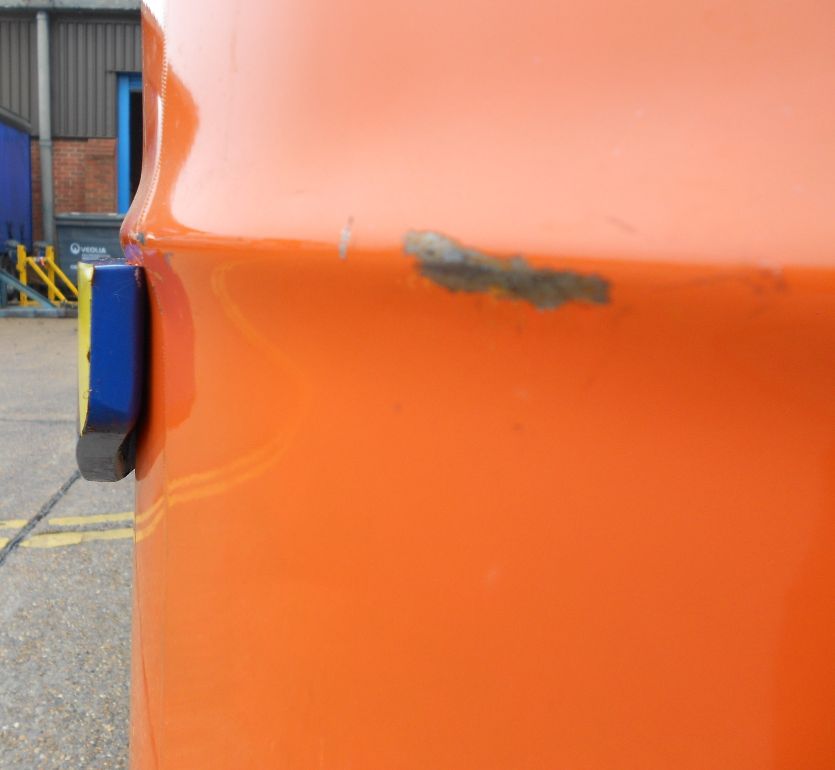

Pronounced Rolling Rim

Pronounced Rolling Rim

An example of a pronounced rolling rim on a steel drum.
