ATEX Stainless Steel Drum Handlers

Grab-O-Matic ATEX Stainless Steel SC10 OH Drum Rotator

SC10 OH St-Steel Rotated

Product information

Grab-O-Matic ATEX Stainless Steel SC10-OH Drum Rotator is suitable for use in ATEX zone 1 or 2 spark proof areas or clean rooms.

All parts are manufactured from stainless steel including the drum clamping system. The unit can be hung from the hook of a crane or attached to the forks of a fork truck. Rotation is via a hand operated gear box which allows full control throughout the rotation process. Optional extras include a chain wheel and chain for high level dispensing and webbing and ratchet clamping system and safety adaptor for use with plastic drums.

These units are manufactured bespoke to suit customer requirements.


Technical Specification

– SWL: 500kg
– Fork Entry: 130mm x 70mm (larger sizes available)
– Weight: 80kg

Availability: 3-4 weeks

Contact Us
SC10-OH-St-Steel

SC10-OH-St-Steel

Stainless steel units are available for clean room or Atex spark proof areas manufactured bespoke for customer requirements.

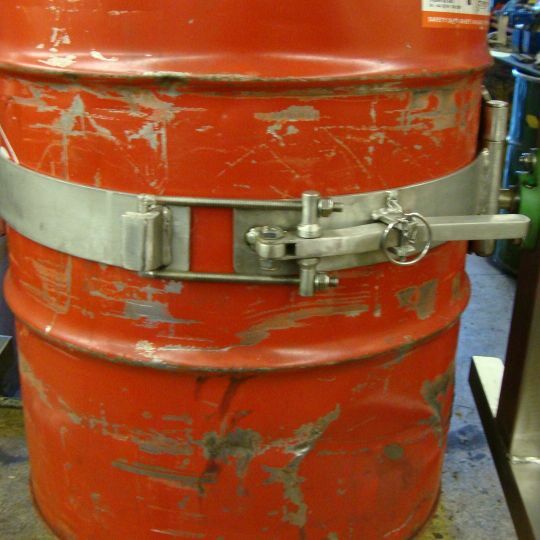

Stainless Steel Clamping System

Stainless Steel Clamping System

The adjustable overcentre clamping system is secured with a locking pin.

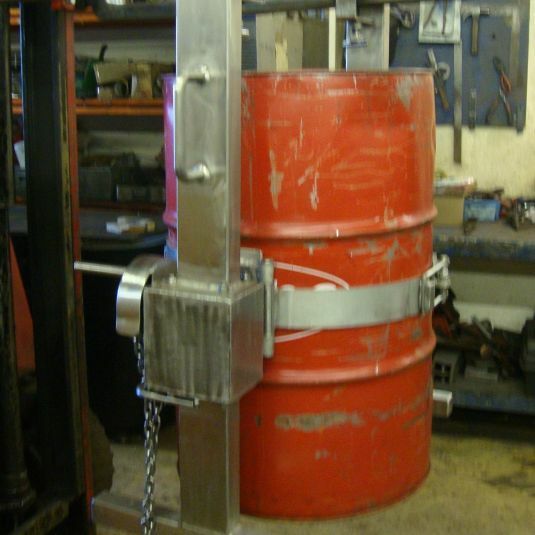

SC10-OH- St-Steel Drum Rotator

SC10-OH- St-Steel Drum Rotator

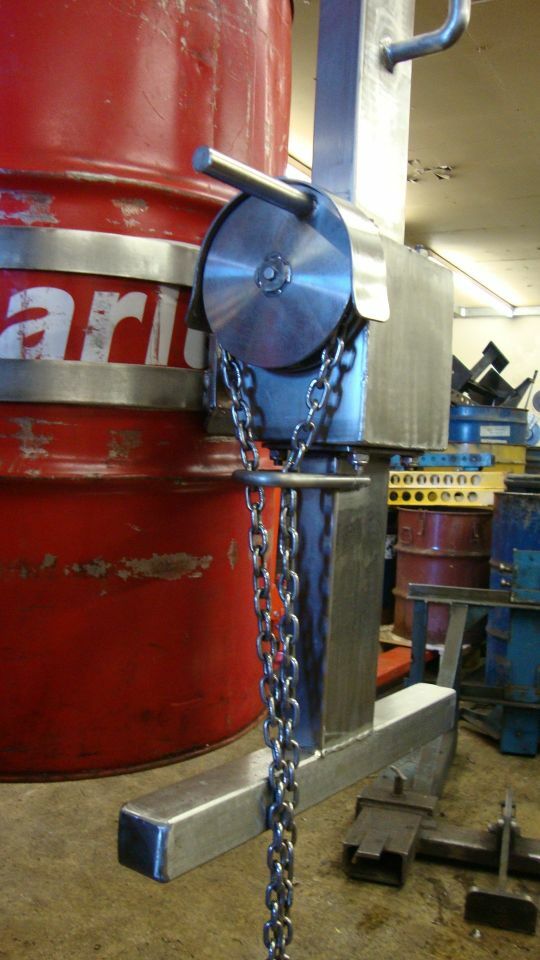

Chain wheel and chain with boxed in gearbox.
